Measuring Range | : | 1.3000 to 1.7000 |
ND Range | : | N.D.1.3000 to N.D. 1. 7000 in steps of 0.001 |
Accuracy | : | 0.0002 |
Sugar Percentage | : | 0 to 95% in steps of 1 Division |
Accuracy | : | ±0.5% |
Temptature Range | : | - 0-50 º C |
Pressure Range | : | 5 to 20PSI ± 3PSI |
Temperature Range | : | 120°C appox. At 15 20PSI appox. |
Power Consumption | : | 220 /230 V AC ± 10% Single Phase 50Hz |
Control Panel | : | Temp. / Pressure Indicator, Pressure Switch, |
Optional | : | Timer 0-60minute |

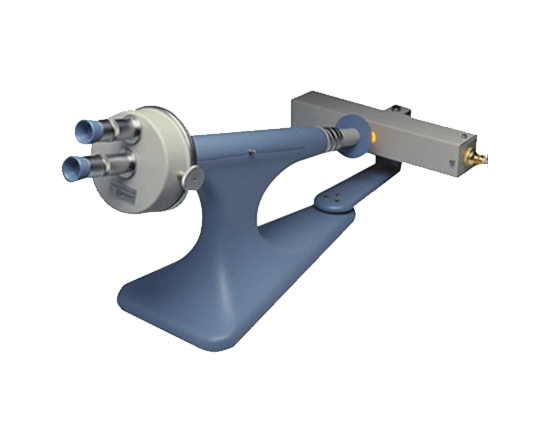

Measurement Range Of | +130° To -30° |
Vernier Accuracy | 0.1°(I.S.S.) |
Telescopic Magnification | 4.5x |
Least Count | 0.01º |
Analyzer | Glens Thompson Prisms, Polarizer Half Shade, Polarizing System Aperture 6 Mm |
Light Source | Arrangement For 35watt Sodium Vapour Lamp Light Source Input |
Tube | Borosil Glass Tube 200mm Cut Type 220v+10% Vac |
Temperature Range | Ambient to 200 Deg C |
Resolution | 0.1 Deg C |
Display | Digital |
Control | PID Controller |
Heater Rating | 1500 Watt/ 07 Amp/ 220 Volt |
Sensor | PT 100 |
Timer | 999 min |
Hole Size | 6mm depth X 4mm die |
Glass Tube with interchangeable socket & Condenser | |
Sample Volume | 15 Sample |
Glass Part Included | |
Block Dimension | 280X165X70mm |
(A) | Soap Bubble Flow Meter. 1 No. |
(B) | Silicon Rubber Septums. 20 Nos. |
(C) | Set Of Fuses. 1 Set |
(D) | Set Of Tools. 1 Set |
(E) | Copper Tubing For Gas Connections. 1 Set |
(F) | Fid Ignitor. 1 No. |
(G) | Instruction Manual. 1 No. |
(H) | Dust Cover. 1 No |
Single Channel Chromatography Interface Winchrom With Software (Window Based) To Be Used With Your Pc | |
Capillary Column Attachment For Split/Splitless Injection With S.S. Diaphram Pressure Regulator For Your Gas Chromatograph |

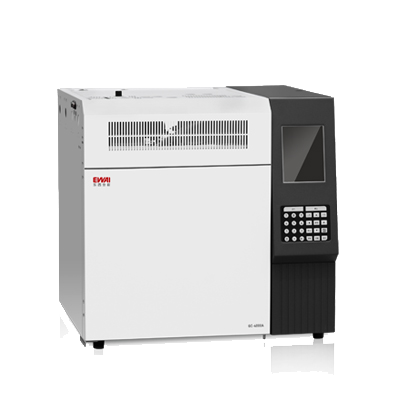

Name | Model | Number | Remark |
Gas chromatograph | AI-6400GC | 1platform | Standard accessories |
Detector | FID | 2 individual | Standard accessories |
TCD | 1 individual | ||
Conversion device | 1The cover | Standard accessories | |
Chromatographic column | 1The cover | Standard accessories | |
Chromatography workstation | Special power system | 1The cover | Standard accessories |
Oscillator instrument | 1platform | Buy locally | |
Standard gas | 1bottle | Buy locally | |
Gas source | Nitrogen, hydrogen, air | 1The cover | Buy locally |
Computer, printer | 1The cover | Buy locally |
Component | H2 | CO | CO2 | CH4 | C2H4 | C2H6 | C2H2 |
Minimum detectable concentration (ul/L) | 2 | 1 | 5 | 0.1 | 0.1 | 0.1 | 0.1 |
Flame ionization detector (FID): MDL < 1.5 pg C/sec |
Thermal conductivity detector (TCD): MDL < 2.5 ng /ml |
Micro-thermal conductivity detector (µTCD): MDL < 400 pg/ml |
Nitrogen phosphorus detector (NPD):MDL < 0.2 pg N/sec, <0.02 pg P/sec |
Flame photometric detector (FPD) : 1.0 pg S/sec, 0.2 pg P/sec |
Electron capture detector (ECD) : MDL < 10 fg/sec Programming ramp/plateaus : 25/26 : Temperature Stability : ± 0.01oC |
Pulsed discharge detector (PDD) |
Pulsed flame photometric detector (PFPD) |
Mass Spectrometer(MS) |

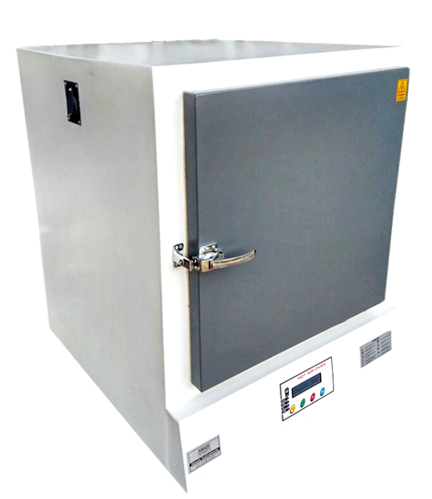

Control Panel | With Mains & Load Indicator, Fan Switch & Mains Switch, Temperature Controller |
Temperature Rage | Ambient to 250°C |
Temperature Stability | 1°C or Better. |
Material | CRC/Mild Steel with Powder Coated, S.S. Gate |
Duty Cycle | Continuous |
Tray | 04 NO |
Display | LCD display |
