Plant Growth Equipment


Plant Growth Chamber
Model No - AI -900PGC
Technical parameter
ILLUMINATION MAX. 23000 LUX
Cooling Device Hermetically sealed Compressor(1/3 HP)
Shelves 3 EA
No. of Doors Single
Channel Manual
Controller LED
Model Base model
Programmable No
Size 08 cubic feet
Temperature Range 0°C to 60°C (Light ON: 10°C to 60°C )
Accuracy ±0.5°C at 20°C
Controller Microprocessor PID controller
Humidity up to 95%
Range 50% to 95% RH
Accuracy ±3%
Controller Microprocessor PID controller
Sensor Electronic Device
Interior Construction Stainless Steel 304 Grades (Stainless Steel 316-optional)
Exterior Construction MS Powder Coated (Stainless Steel 304 / 316 Grades - Optional)
Insulation Glass Wool
Interior Doors Tempered Glass Door w/ Silicone Packing
External Doors Solid Doors w/ Magnetic Gum Packing
Shelves' Construction Stainless Steel
Other:
Illumination Type Fluorescent Lamp
Refrigerant Gas R-134a Eco-Friendly Gas
Safety Device - Leakage breaker for power supply
- Over current protector
- Overheat protector

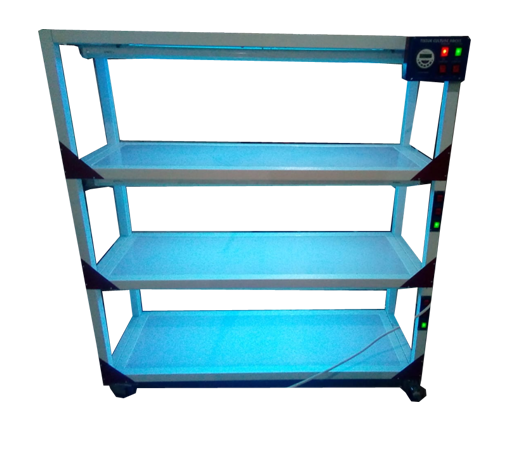

Plant Tissue Culture Rack
Model No - AI-142
Specification
No Flickering Effect.
Tissue Culture Racks Are Made Of Tubular Mild
Steel Pipes Flawlessly Constructed Duly Powder
Coated For Longer Life So As To Provide The Structure Due Protection From Issues Like Corrosion For Durability.
Each Rack Of Size 48"X18" (Depth) Is Covered With Thick Unbreakable Hylem Sheet.
Distance Between Shelves To Shelves Is 15".
Platform Surface Is Of 3mm Thick Hylem Sheet.
Four 40-Watt Fluorescent Light (With Electronic Ballast).
4x25 Watt Incandescent Lamps In Each Shelf With Switching Arrangement.
Uv Germicidal Light Are Fitted Inside The Rack /Work Area.
All Fluorescent Tubes Chocks And Ultra Violet Germicidal Tube Chocks Are Fitted Outside Of Rack. If Desired To Avoid Heat Dissipation Inside The Rack.
All Control Panels Are Fitted On The Sides Of Tissue Culture Racks Comprising Of On/Off Switch Of Fluorescent Tubes And Uv Tubes
The Whole Rack Is Provided With Four Nos. Castor Wheels At The Bottom For Easy Mobility To Any Place.
Total No. Of Racks : 4
Total No. Of Illuminated Racks : 3
